WEB PoE Switch

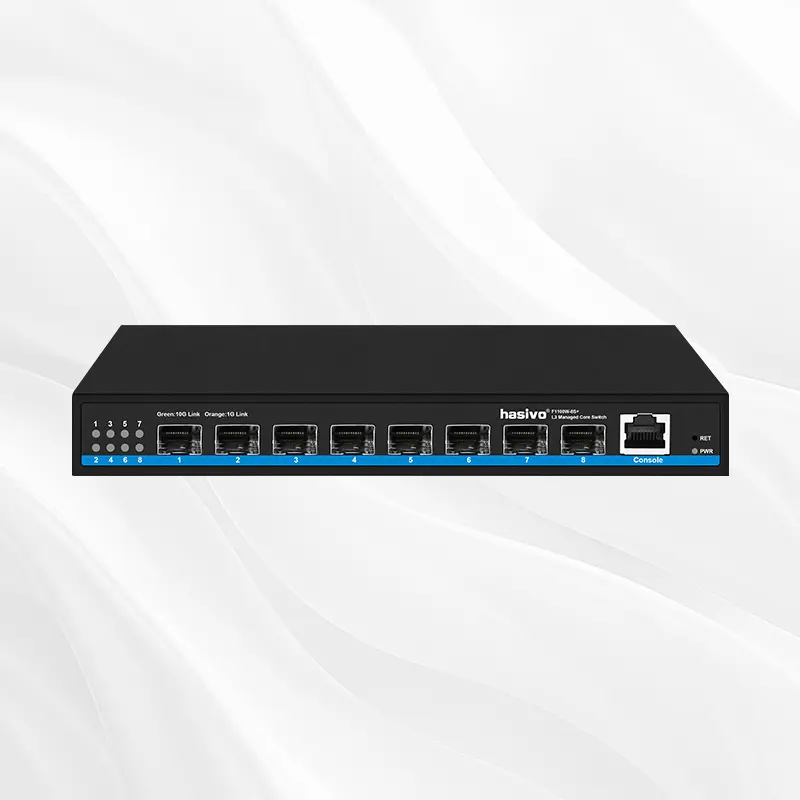

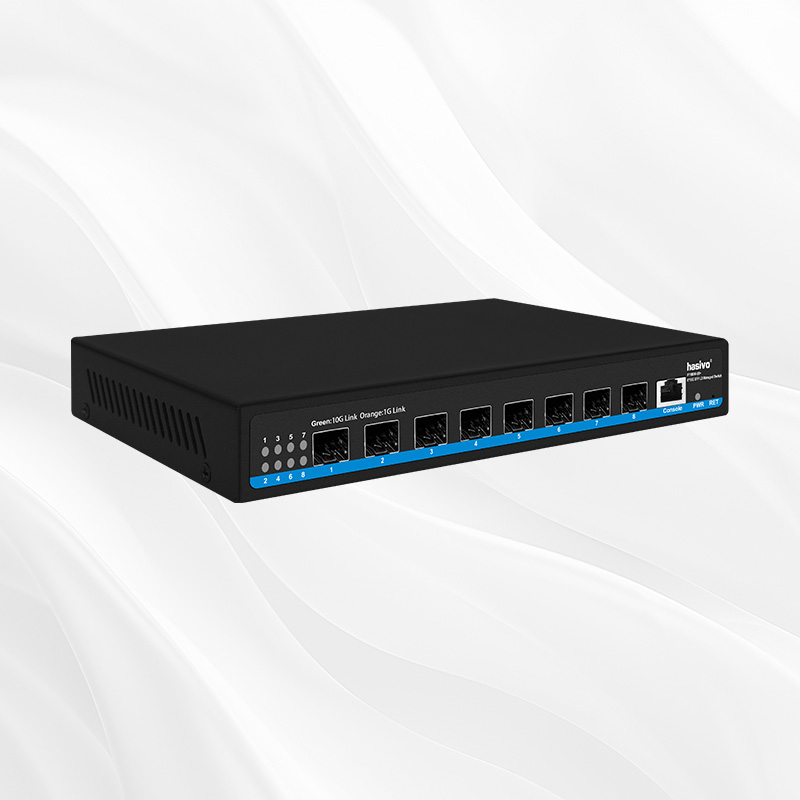

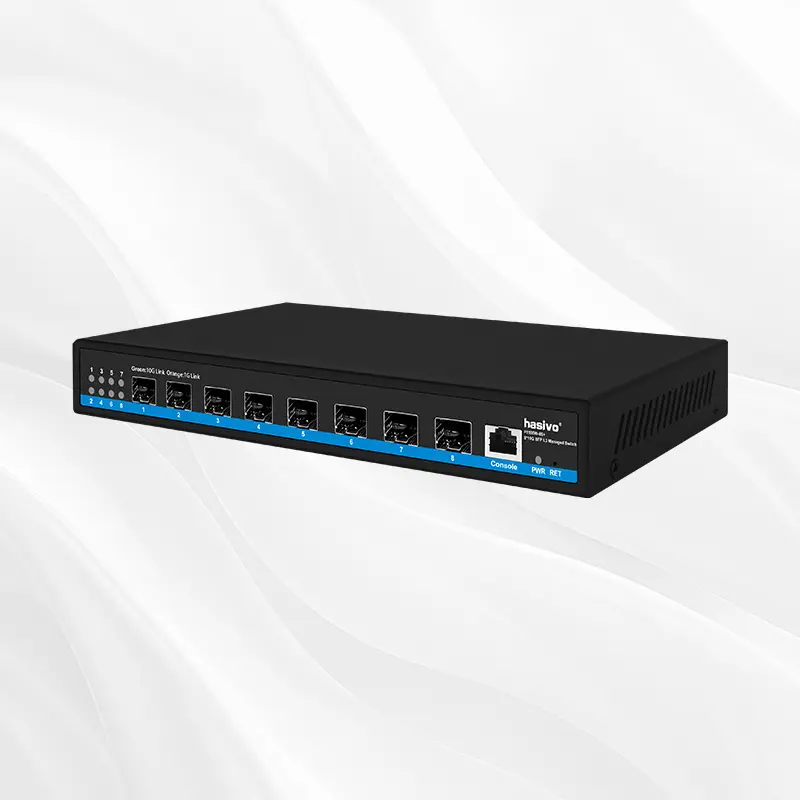

The F1100W-8S+10G three-layer enterprise level multifunctional network management switch independently developed by Hasivo is specially optimized and enhanced for enterprise customers, with higher reliability. The device adopts Broadcom's new generation high-performance platform and Hasivo's self-developed switch system; Supports flexible network management functions such as 802.1Q VLAN, port monitoring, port aggregation, bandwidth control, and ring network application building, making it easy to adapt to the current complex network application environment. Suitable for hotels, campuses, factory dormitories, and enterprises to establish an economically efficient network. Plug and play, easy to use and manage.
Full 10G optical port
Strong business capabilities
Support RIP dynamic routing protocol, dynamically generate and update routing tables, and solve routing problems in small and medium-sized networks after subnetting. Supporting static routing, administrators manually configure routing entries to achieve communication between different network segments, which is simple, efficient, and reliable. Support DHCP servers to assign IP addresses to hosts in the network. Support DHCP relay, allowing switches in different interfaces or subnets to obtain IP addresses, reducing the number of DHCP servers. Support proxy ARP, allowing hosts in the same network segment but different physical networks to communicate normally. Supports IEEE 802.1Q VLAN, MAC VLAN, protocol VLAN, and Private VLAN, allowing users to flexibly divide VLANs according to different needs. Support GVRP, achieve dynamic distribution, registration, and attribute propagation of VLANs, reduce manual configuration workload, and ensure correct configuration. Supports QoS, supports three priority modes based on ports, 802.1P, and DSCP, and four queue scheduling algorithms including Equ, SP, WRR, and SP+WRR.
Diverse reliability protection
Support STP/RSTP/MSTP spanning tree protocol, eliminate layer 2 loops, and achieve link backup. Support spanning tree security features to prevent devices in the spanning tree network from being subjected to various forms of malicious attacks. Support static and dynamic aggregation, effectively increase link bandwidth, achieve load balancing, link backup, and improve link reliability. Support quadruple binding of IP address, MAC address, VLAN, and port to filter data packets. Support ARP protection against common gateway spoofing, man in the middle attacks, ARP spoofing, and ARP flooding attacks in local area networks. Support IP source protection to prevent illegal address spoofing, including MAC spoofing, IP spoofing, and MAC/IP spoofing.
