L2 Managed PoE Switch

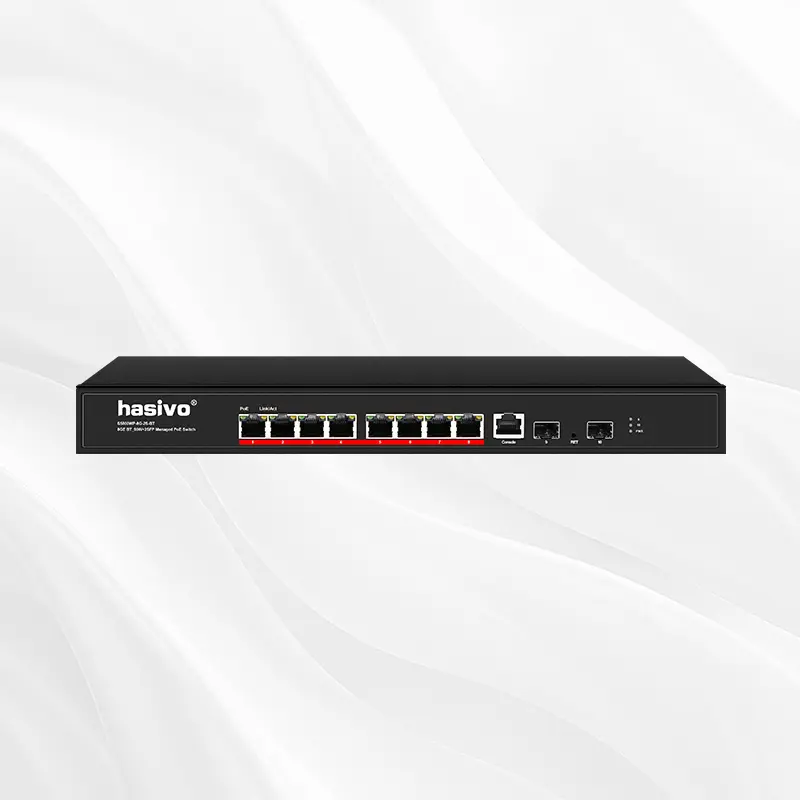

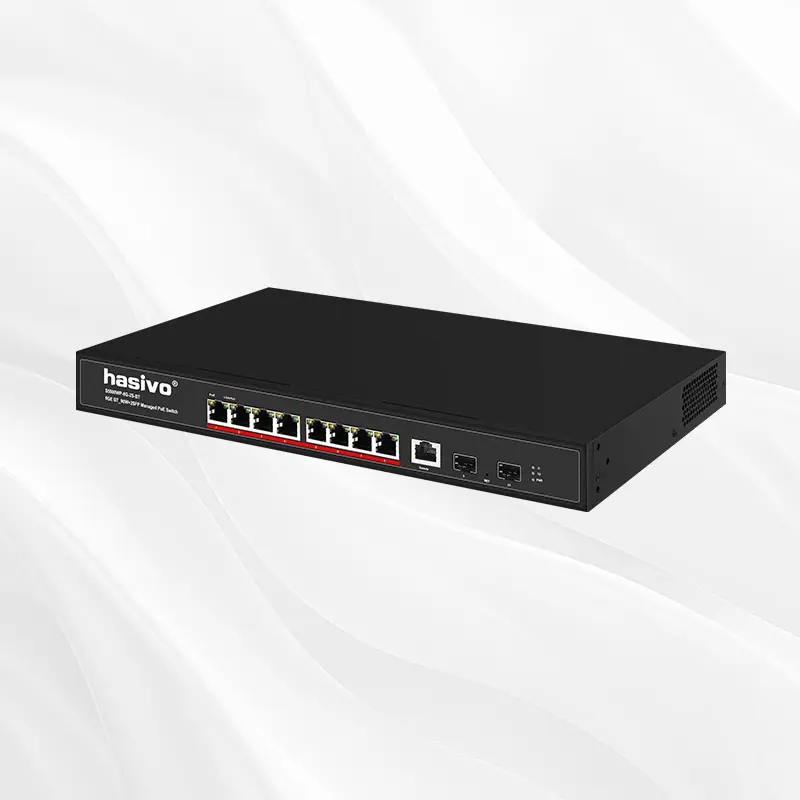

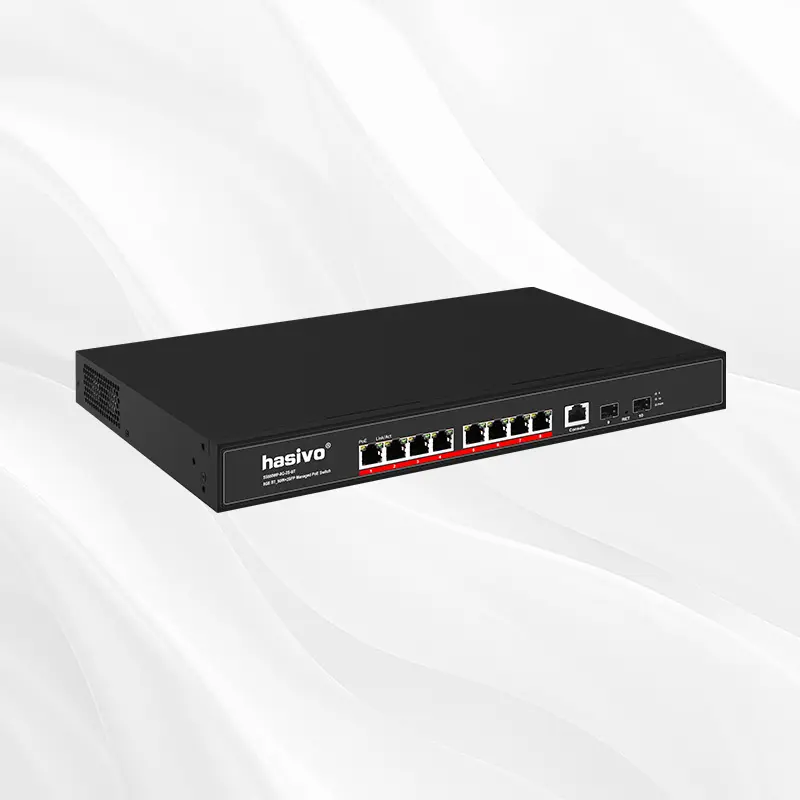

S5800WP-8G-2S-BT is a high-power management full gigabit PoE switch independently developed by Hasivo. Ports 1-8 support high-power BT90W power output, complying with IEEE 802.3af/at/PoE++/BT standards. The maximum PoE output power of the whole machine is 800W. As the most compatible PoE power supply device in the industry so far, it provides flexible and cost-effective full gigabit ports that can automatically detect and identify power receiving devices that meet standards and provide power to them through Ethernet cables. Plug and play, simple and convenient to use, easy to manage, suitable for outdoor high-power APs, sky network cameras, etc., to build an economical and efficient PoE network.
Gigabit electrical port
The switch is equipped with 8 Gigabit Ethernet ports and 2 Gigabit optical ports, which can achieve fast and reliable data transmission within the network, facilitating flexible networking for users and meeting various networking needs in different scenarios; At the same time, all ports support line speed forwarding and have high-speed bandwidth processing capabilities. The switch is compatible with high-power 90W terminal power supply; 56G ultra large backplane bandwidth; Adopting Hasivo intelligent PSE chip; The maximum PoE power supply for the whole machine is 800W, and the maximum PoE power supply for a single port is 90W; Compliant with IEEE 802.3af/at PoE standard, ports support power priority;
Strong business capabilities
Support 802.1Q VLAN, Port VLAN, QoS, and storm suppression; Support port aggregation, port mirroring, port monitoring, and loop protection; The host is designed with low power consumption, and the fan enhances heat dissipation to ensure stable operation of the product; Adopting Hasivo's independently developed high-power built-in PFC high-efficiency power supply, it provides long-term stable PoE power output. Supports QoS, supports three priority modes based on ports, 802.1P, and DSCP, and four queue scheduling algorithms including Equ, SP, WRR, and SP+WRR. Support ACL, filter data packets by configuring matching rules, processing operations, and time permissions, and provide flexible security access control policies.
Diverse reliability protection
Support port security, stop learning when the maximum number of MAC addresses learned by the port is reached, to prevent MAC address attacks and control port network traffic. Support 802.1X authentication, provide authentication function for LAN computers, and control the authorization status of controlled ports based on the authentication results. Support spanning tree security features to prevent devices in the spanning tree network from being subjected to various forms of malicious attacks. Support static and dynamic aggregation, effectively increase link bandwidth, achieve load balancing, link backup, and improve link reliability.
