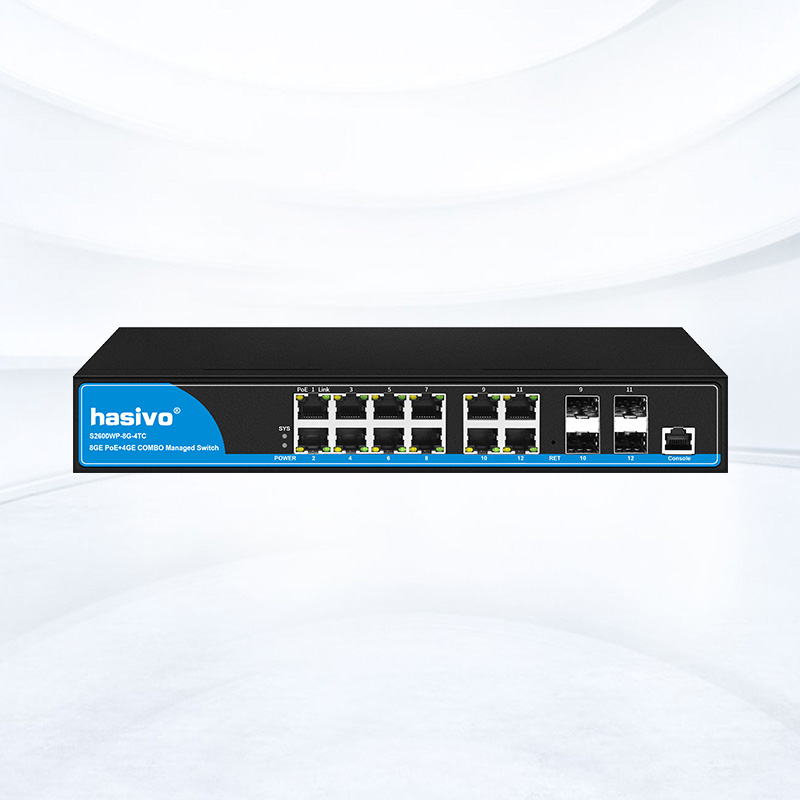

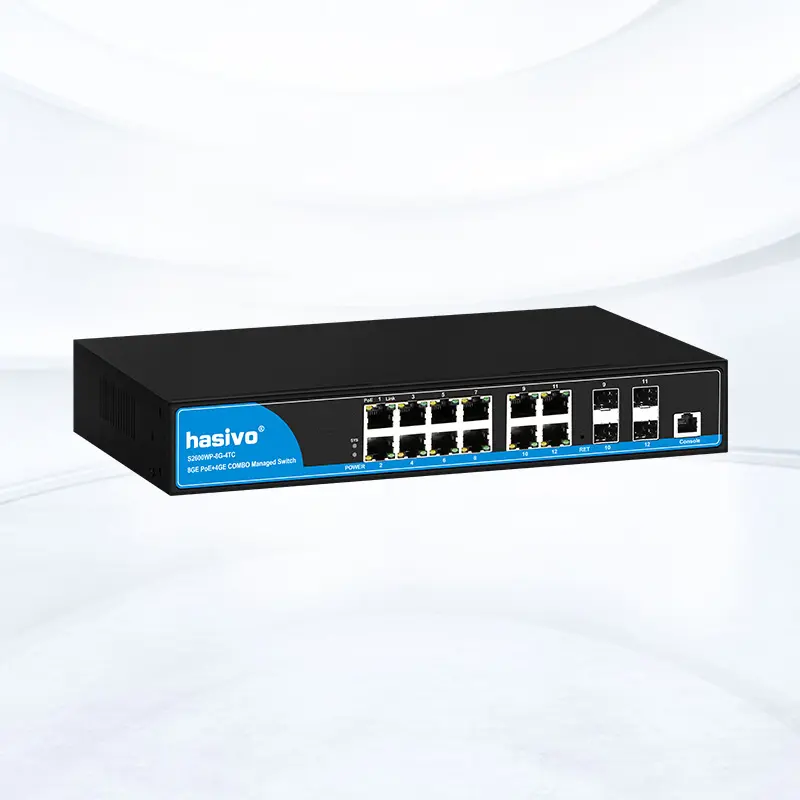

L2 Managed PoE Switch
The S2600W-8G-4TC Layer 2 multifunctional PoE network managed switch is independently developed by Hasivo and adopts Realtek’s latest high-performance platform and newly developed switch system. It supports a range of flexible network management functions, including 802.1Q VLAN, IGMP, port monitoring, port aggregation, bandwidth control and the creation of ring network applications. This series of switches is specially designed to meet the complex networking requirements of high-performance environments and provides a comprehensive security protection system, comprehensive QoS policies and rich VLAN functions. The interface is friendly and easy to manage, and it is suitable for deployment at the core level of small and medium-sized enterprises, communities, and schools. Plug-and-play design ensures ease of use and management.
Gigabit electrical port+Gigabit optical port
Strong business capabilities
Supports IEEE 802.1Q VLAN, users can divide VLAN according to their specific needs. It also supports voice VLAN, which can configure QoS parameters of voice data flow, improve transmission priority and ensure call quality. In addition, it also supports QoS based on three priority modes of port, 802.1P and DSCP to optimize bandwidth configuration. The switch also supports ACL, which filters data packets by configuring matching rules, processing operations, and time permissions to provide flexible security access control policies. It also supports IGMP V1/V2 multicast protocol and IGMP Snooping to meet the needs of multi-terminal high-definition video surveillance and video conferencing access. The switch also supports multicast VLAN and multicast filtering, which can efficiently transmit data, save network bandwidth, and reduce network load. Other functions include port monitoring, device management and maintenance through the web interface, and port aggregation to effectively increase link bandwidth, achieve link backup, and improve link reliability.
Diverse reliability protection
Supports STP/RSTP/MSTP spanning tree protocols to eliminate Layer 2 loops and achieve link backup. The switch also supports spanning tree security to protect devices in spanning tree networks from various forms of malicious attacks. It also supports static and dynamic aggregation, effectively increasing link bandwidth, achieving load balancing, link backup, and improving link reliability. The switch also supports quadruple binding of IP address, MAC address, VLAN, and port to filter data packets. It also provides ARP protection to prevent gateway spoofing, man-in-the-middle attacks, ARP spoofing and ARP flooding attacks that are common in LANs. In addition, it also supports IP source protection to prevent illegal address spoofing, including MAC spoofing, IP spoofing, MAC/IP spoofing, etc.
