L2 Managed PoE Switch

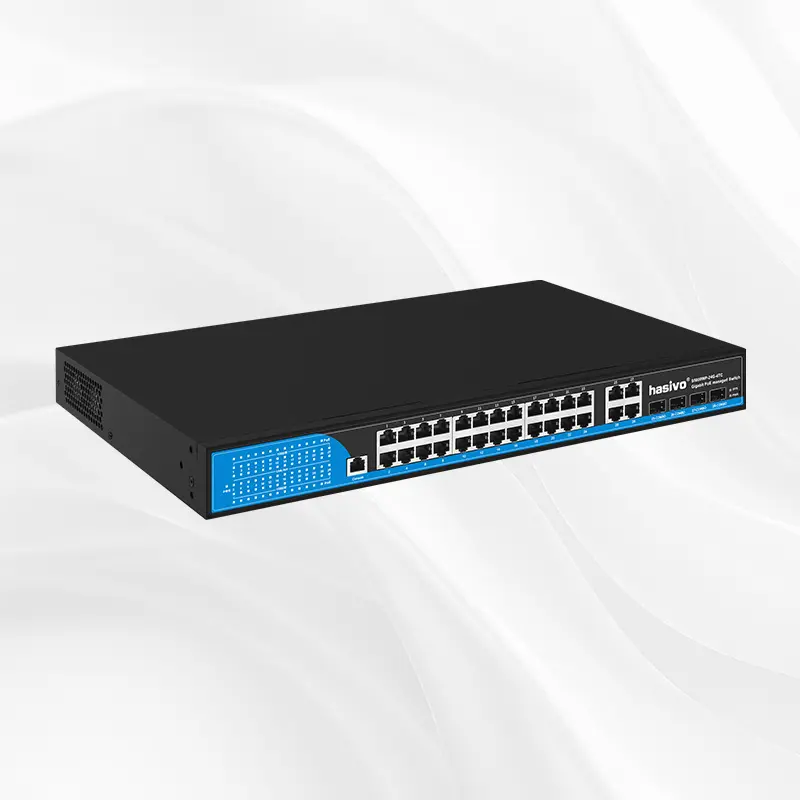

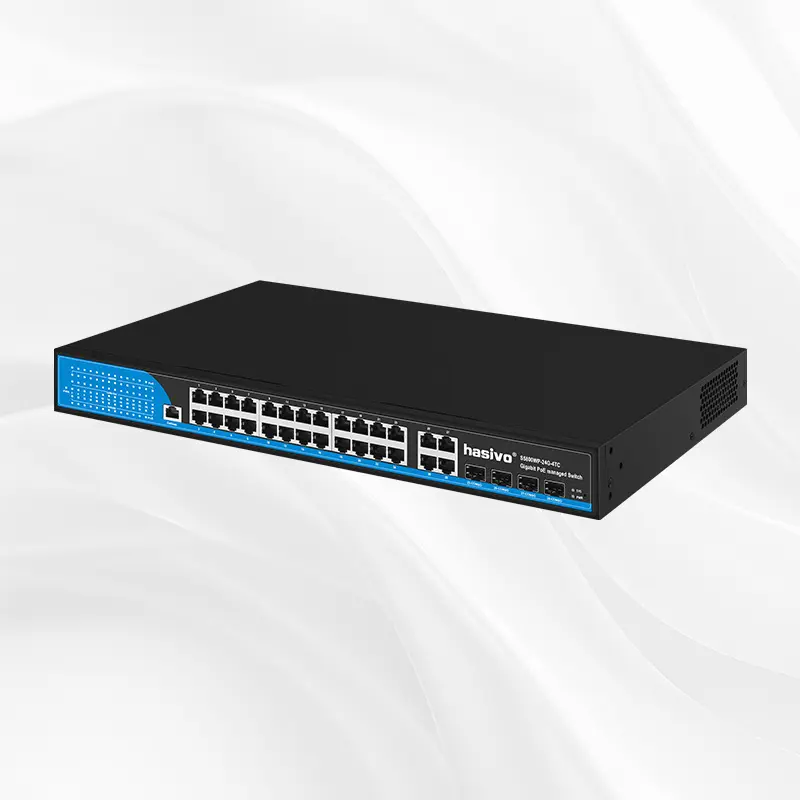

Full Gigabit 4SFP+28GE L2+ Managed PoE Switch
Gigabit access, Gigabit uplink
The entire series supports the combination of "Gigabit Ethernet ports + Gigabit optical multiplexing ports", facilitating flexible networking and meeting various scenarios' requirements; All ports support line-rate forwarding and possess high-speed bandwidth processing capabilities. Compliant with the IEEE 802.3af/at PoE standards, the ports support power priorities, delivering a maximum total PoE power of 400W. Ports 1-2 support IEEE802.3af/at/bt with a maximum of 90W, while ports 3-24 support IEEE802.3af/at with a maximum of 30W. The power supply is stable and reliable, with simple wiring and convenient installation, fulfilling the PoE requirements for scenarios such as security, conference call systems, and wireless coverage.
Strong business capabilities
Supports IEEE 802.1Q VLAN, IGMP, port monitoring, port security, port isolation, port aggregation, bandwidth control, ring network applications, QoS, ACL, spanning tree, multicast, and other flexible network management functions. Supports 802.1X authentication, provides authentication capabilities for LAN computers, and controls the authorization status of controlled ports based on authentication results. Additionally, it features security functions like MAC address filtering, port security, and access control lists (ACLs) to help protect the network from unauthorized access and attacks, enhancing network security.
Diverse reliability protection
Supports STP/RSTP/MSTP spanning tree protocols, eliminates layer 2 loops, and achieves link backup. Supports spanning tree security functions to shield devices in the spanning tree network from various malicious attacks. Support static and dynamic aggregation, effectively increase link bandwidth, achieve load balancing, link backup, and improve link reliability.
