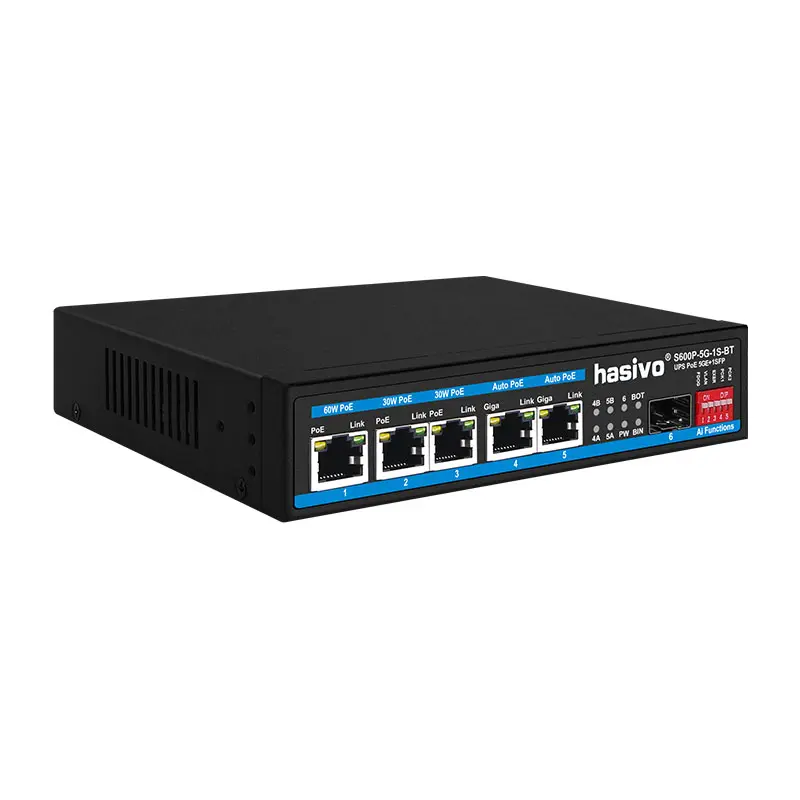

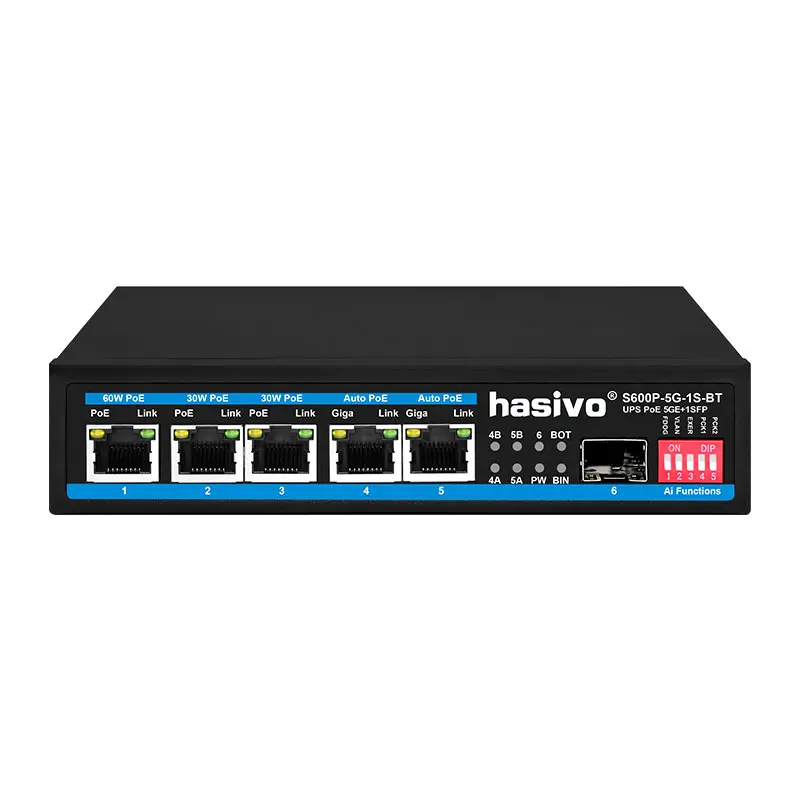

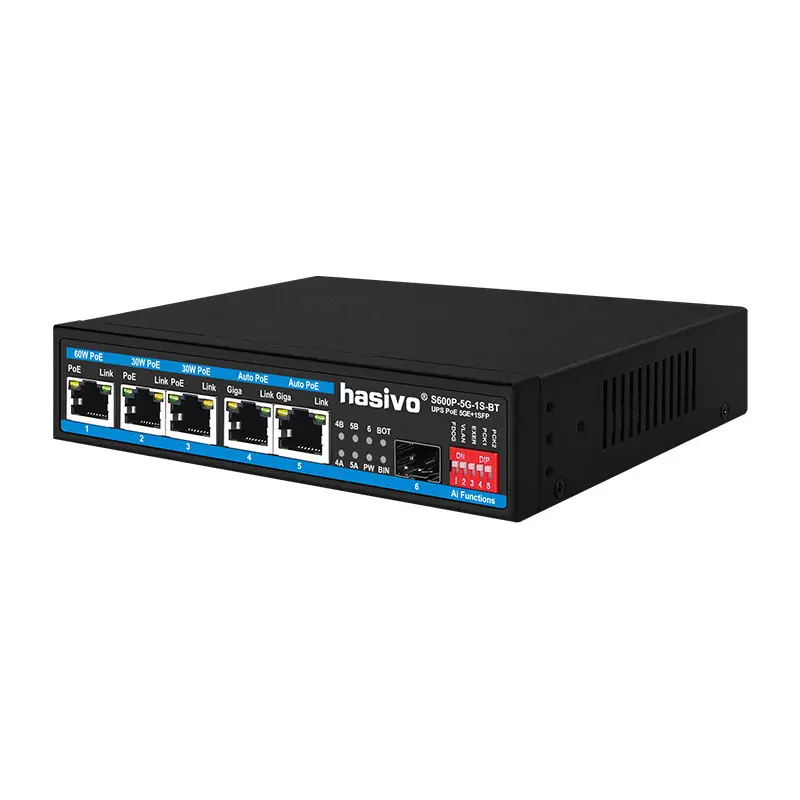

Hybrid uplink 5-port solar PoE switch-15A

Solar PoE Switch

Hybrid uplink 5-port solar PoE switch-15A

S600P-5G-1S-BT-15A

● 1*10/100/1000Base-TX  60W PoE port(Data/Power)
● 2*10/100/1000Base-TX 30W PoE port(Data/power)
● 2*10/100/1000Base-TX AuTo 24V/48V PoE port(Data/power)
● 1*1000M SFP
● Supports PoE standard: IEEE 802.3af/at PoE++
● Supports 12V/24V (400W) solar panel input
● Supports high power output (the first port can output HiPoE 60W)

    1-4o2e

    The 1-Light 5 high-power solar charging switch is an innovative clean energy solution that integrates an intelligent POE switch with fully automatic charging and discharging functions. It is designed to solve complex environmental network challenges such as power outages, voltage instability and outdoor operations. This industry-leading PoE-powered device offers flexible and cost-effective full Gigabit ports that automatically detect and power compatible devices over an Ethernet cable. Plug and play, simple management, compatible with outdoor high-power APs and sky network cameras, providing a cost-effective solution for building PoE networks.

    Full Gigabit Ethernet port

    The entire series has full Gigabit electrical ports and optical ports, which can meet users' flexible networking needs and meet various networking needs. All ports support line-speed forwarding and have high-speed bandwidth processing capabilities. One port supports IEEE 802.3af/at/PoE++ with a maximum output power of 60W, and 2-3 ports support IEEE 802.3af/at with a maximum output power of 30W. For ports 4-5, utilize Hasivo's fully automatic PoE technology to power 48V or 24V devices, with a maximum output power of 30W for 48V and 25W for 24V.

    1-2a2j
    1-3kwd

    Strong business capabilities

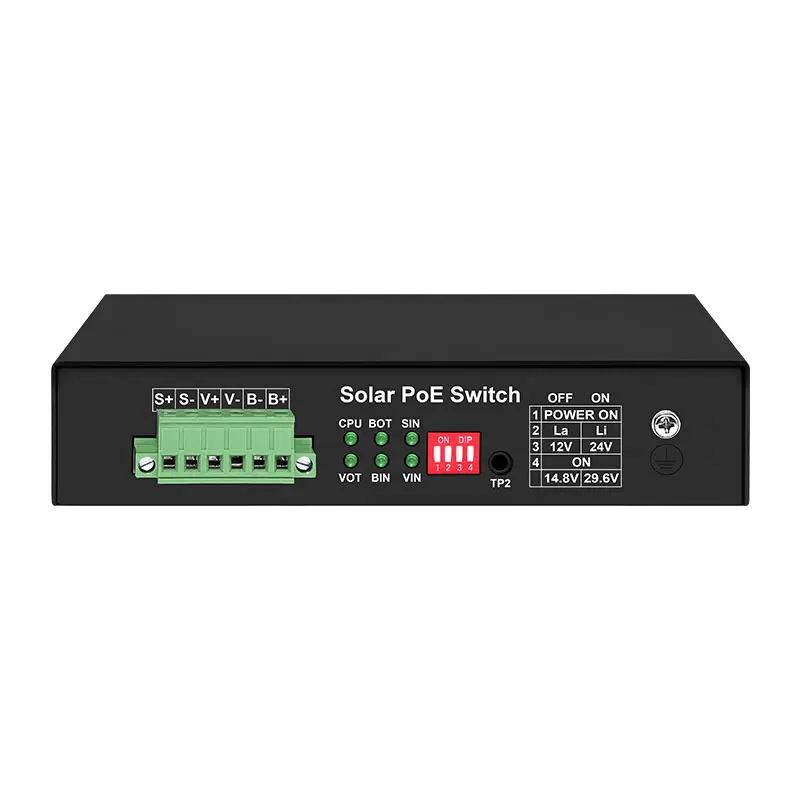

    Rewritten: The device supports the PoE standard IEEE 802.3af/at PoE+, using Hasivo’s independent intelligent PSE chip and intelligent CPU chip to provide high power output (the first port can output HiPoE 60W). Supports 4-5 port 24V/48V adaptive output, supports 12V/24V (400W) solar panel input, DC power input, lead-acid battery (12V 50AH/24V50AH), and lithium battery (12V 50AH/ 24V50AH) types. In addition, it also has automatic battery voltage identification and fully automatic charge and discharge management functions.

    Diverse reliability protection

    Rewrite: The device supports STP/RSTP/MSTP spanning tree protocols, eliminating Layer 2 loops and realizing link backup. It also includes spanning tree security features to protect devices in spanning tree networks from various forms of malicious attacks. In addition, it also supports static and dynamic aggregation, effectively increasing link bandwidth, achieving load balancing, link backup, and enhancing link reliability.

    1-3kwd
    S600P-5G-1S-BT-15A (2)id7
    Download_file
    S600P-5G-1S-BT-15A.pdf
    Download_file
    hasivo_83xx_7v13.img
